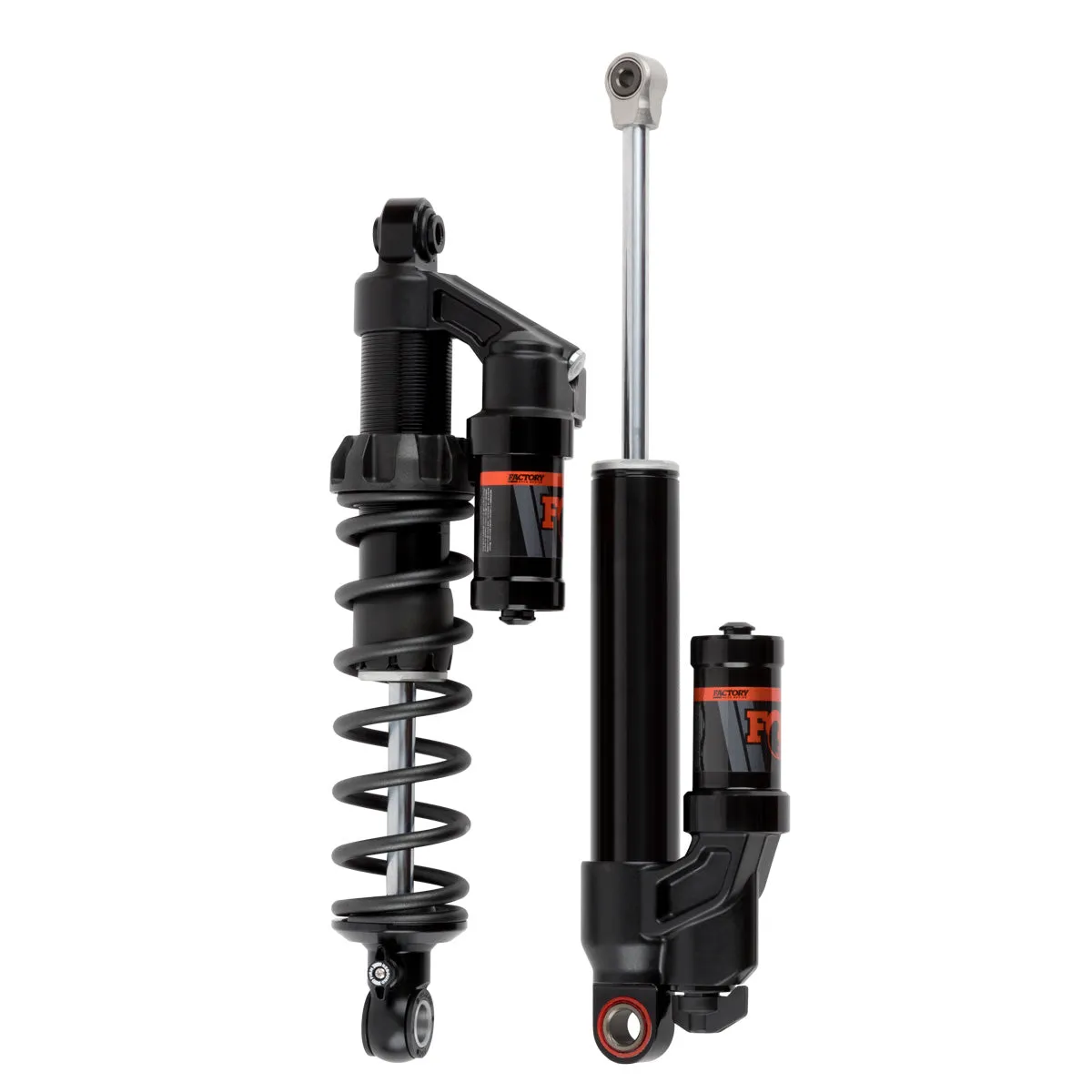

Fox Shock 1.5 Zero/1.5 Zero QSL | Summit 2015-2022
The FOX 1.5 ZERO Quick Switch (QS) coil shocks are the next generation of lightweight mountain sled suspension technology. Ride harder in the backcountry with less fatigue without a compromise of durability. Experience a new sense of control on top of the snow due to less outboard weight.
FOX’s QS technology allows you to adjust the compression and rebound damping with ease to suit the conditions. Three positions keep the adjustment simple, so you focus on the ride instead of counting clicks.
We designed the coil-sprung mountain shocks with two primary objectives: weight reduction and ride performance. FOX optimizes the 1.5 ZERO coil-sprung shocks through material reduction without a sacrifice of ride quality or structural integrity. Additionally, the coil springs were redesigned to retain the same spring rate but with fewer coils and built from a lighter steel alloy. The shocks maintain a linear feel regardless of temperature fluctuation, which keeps your sled setup quick and simple. The new coils result in a spring with the same performance at half the weight.
FOX’s position-sensitive damping technology, with origins in desert truck racing, is now applied to the Factory Race Series coil-sprung shocks. Spiral grooves inside the shock allow the oil to flow around the main piston, reducing damping force in the ride zone for a plush feel. The bypass grooves terminate through the final 30% of the travel, forcing oil to only flow through the main piston and providing a significant increase of bottom-out resistance to cushion any hard hits. Our goal was to inspire confidence next time you send it big thanks to the extra support.
Maximize the power-to-weight ratio of your sled by bolting on FOX’s new mountain shocks.
Complete your Factory Race Series 1.5 ZERO QS suspension kit with the matching track shock kits, 853-02-035.
Features
- Optimized lightweight spring & shock design
- FOX ice scraper technology (FIST)
- One-piece, aluminum mounting hardware
- High-flow velocity-sensitive damping
- Internal groove position sensitive technology
- Fully rebuildable and re-tuneable
Adjustments
- Adjustable spring preload (ski / track front)
- QS3 — 3 position compression (ski / track front)
- QS3 — 3 position rebound (ski / track front)
- QS3 — 3 position compression with lock-out mode (track rear)
Fits on :
Model: Summit, T-Motion / Freeride, 146”-165”
Fitment: 2015-2021 *including expert and turbo
